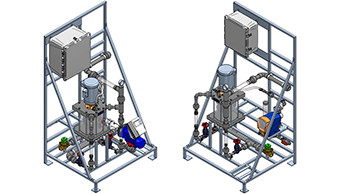

ProMix-M (In-line Controls)
Updated Design!
The ProMinent® ProMix is a pre-engineered polymer mixing system with intuitive controls. Designed as an in-line or makedown unit, the ProMix is engineered to meet liquid polymer applications utilizing diaphragm or progressive cavity pump technologies. The unique mixing regime delivers a highly activated polymer solution to every application with optimum performance.
Features and benefits
- LCD display with touchpad control
- 4-20 mA input to pace pump
- Remote start/stop
- General alarm contacts
- Adjustable flush settings
- True multi-zone mixing chamber that delivers a tapered energy profile for proper polymer activation
- Unique injection check valve with easy access for cleaning
- Diaphragm and progressive cavity pump options
- System protection against loss of water flow
- Precise activated polymer solution delivery
- Open design for easy maintenance
- Suction lift or flooded suction
- Twist lock fittings
- Selectable emulsion or mannich polymer
Request more info
Applications
- Emulsion, dispersion or mannich polymer activation
- Coagulant or solution polymer feed
- Water and wastewater treatment
- Clarification
- Sludge dewatering
Specifications
- Water Inlet: 1-1/2” FNPT
- Polymer Inlet: 1/2” or 1” FNPT
- Product Outlet: 1-1/2” FNPT
- Drain Connection: 1/4”
- Max. Operating Pressure: 100 PSIG
- Power Supply: DA Models 120 VAC, 1 ph, 60 Hz, 20 Amp
- Power Supply: PA Models 220 VAC, 1 ph, 60 Hz, 20 Amp
- Motor: 1.5 hp, 115/230 VAC, 1 ph, TEFC, 1725 rpm
- Dimensions: 40” x 34” x 72” (L x W x H)
Capacity Data
| ProMix-M with Diaphragm Metering Pump | |||||
|---|---|---|---|---|---|
| Part Number | Model Number | Primary Dilution | Post Dilution | Neat Polymer Pump | Max. Pump Pressure |
| gph | gph | gph | psig | ||
| 1048367 | 300x2-2.3DA | 300 | 300 | 2.3 | 100 |
| 1048368 | 600x2-3.8DA | 600 | 600 | 3.8 | 100 |
| 1048369 | 600x2-6.2DA | 600 | 600 | 6.2 | 100 |
| 1048370 | 600x2-10.3DA | 600 | 600 | 10.3 | 58 |
| 1048371 | 1200x2-6.2DA | 1200 | 1200 | 6.2 | 100 |
| 1048372 | 1200x2-10.3DA | 1200 | 1200 | 10.3 | 58 |
| 1048373 | 1500x2-6.2DA | 1500 | 1500 | 6.2 | 100 |
| 1048374 | 1500x2-10.3DA | 1500 | 1500 | 10.3 | 58 |
| ProMix-M with Progressive Cavity Pump | |||||
|---|---|---|---|---|---|
| Part Number | Model Number | Primary Dilution | Post Dilution | Neat Polymer Pump | Max. Pump Pressure |
| gph | gph | gph | psig | ||
| 1048375 | 300x2-5.0PA | 300 | 300 | 5.0 | 100 |
| 1048376 | 600x2-5.0PA | 600 | 600 | 5.0 | 100 |
| 1048377 | 600x2-10.0PA | 600 | 600 | 10.0 | 100 |
| 1048378 | 1200x2-10.0PA | 1200 | 1200 | 10.0 | 100 |
| 1048379 | 1200x2-24.0PA | 1200 | 1200 | 24.0 | 100 |
| 1048380 | 1500x2-10.0PA | 1500 | 1500 | 10.0 | 100 |
| 1048381 | 1500x2-24.0PA | 1500 | 1500 | 24.0 | 100 |
